Our custom made mesh banners are designed for windy outdoor environments, with a 25% airflow that reduces wind resistance while maintaining vibrant print quality. Produced on 370gsm semi-coated PVC mesh with a superior protective release liner, these banners are durable, weather resistant and carry a B1 fire rating. They can be printed up to 2450mm high and virtually any width, using advanced UV digital printing for fade-resistant colour.

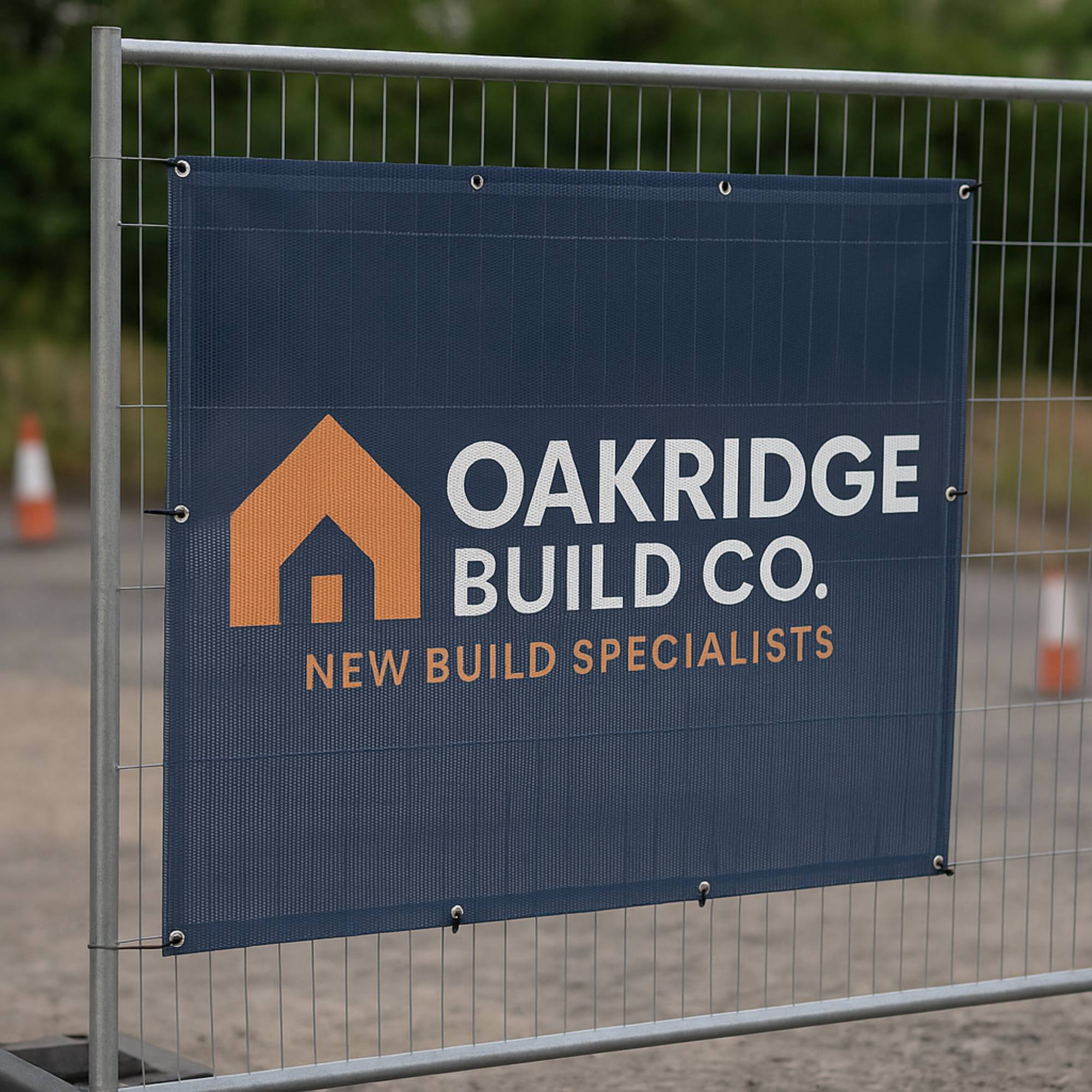

Mesh banners are suitable for building wraps, scaffolding, fencing, event promotions and roadside advertising where full airflow and high visibility are required. They can be finished with hem and eyelets for fixing to fences, walls and railings, or with pole pockets to fit standard 25mm poles. Folded, stitched, welded or grommeted finishing options ensure a secure fit. Ideal for construction sites, sporting venues, festivals, schools, restaurants and charity events, mesh banners provide a long-lasting promotional display solution in even the windiest conditions.
Product Details

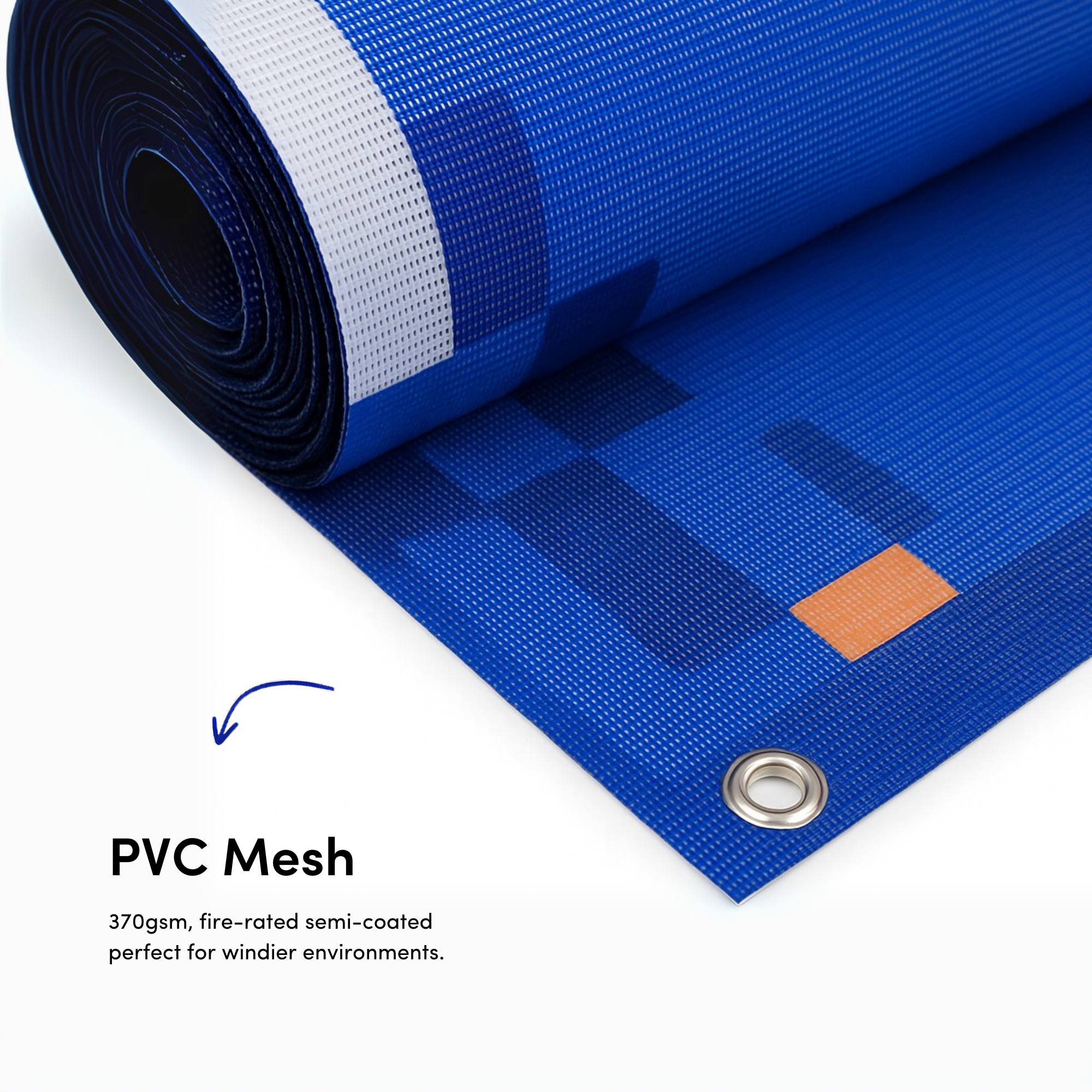

- 370gsm semi-coated PVC mesh banner material
- 25% airflow for windy areas and building wraps
- Protective release liner for easier handling and application
- Weather-resistant and fade-resistant UV printing
- Fire-rated to DIN 4102-1 B1 for indoor/outdoor safety
- Suitable for fences, scaffolding, buildings, and events
Product Specifications
- Maximum print size: 2450mm high × custom width
- Substrate weight: 370gsm (PVC 255gsm, fabric 115gsm, liner 100gsm)
- Base fabric: 1000 × 1000 denier
- Knitting: 12 × 12 inch
- Tensile strength: Warp 1250 / Weft 1100 N/5cm
- Tear strength: Warp 235 / Weft 220 N
- Air permeability: 2649 mm/s
- Light transmission: 37%
- Temperature resistance: –20°C to +70°C
- Fire rating: B1 certified
Ink Compatibility
- Latex
- Eco-Solvent
- Solvent
- UV-Curable
Assembly & Documents

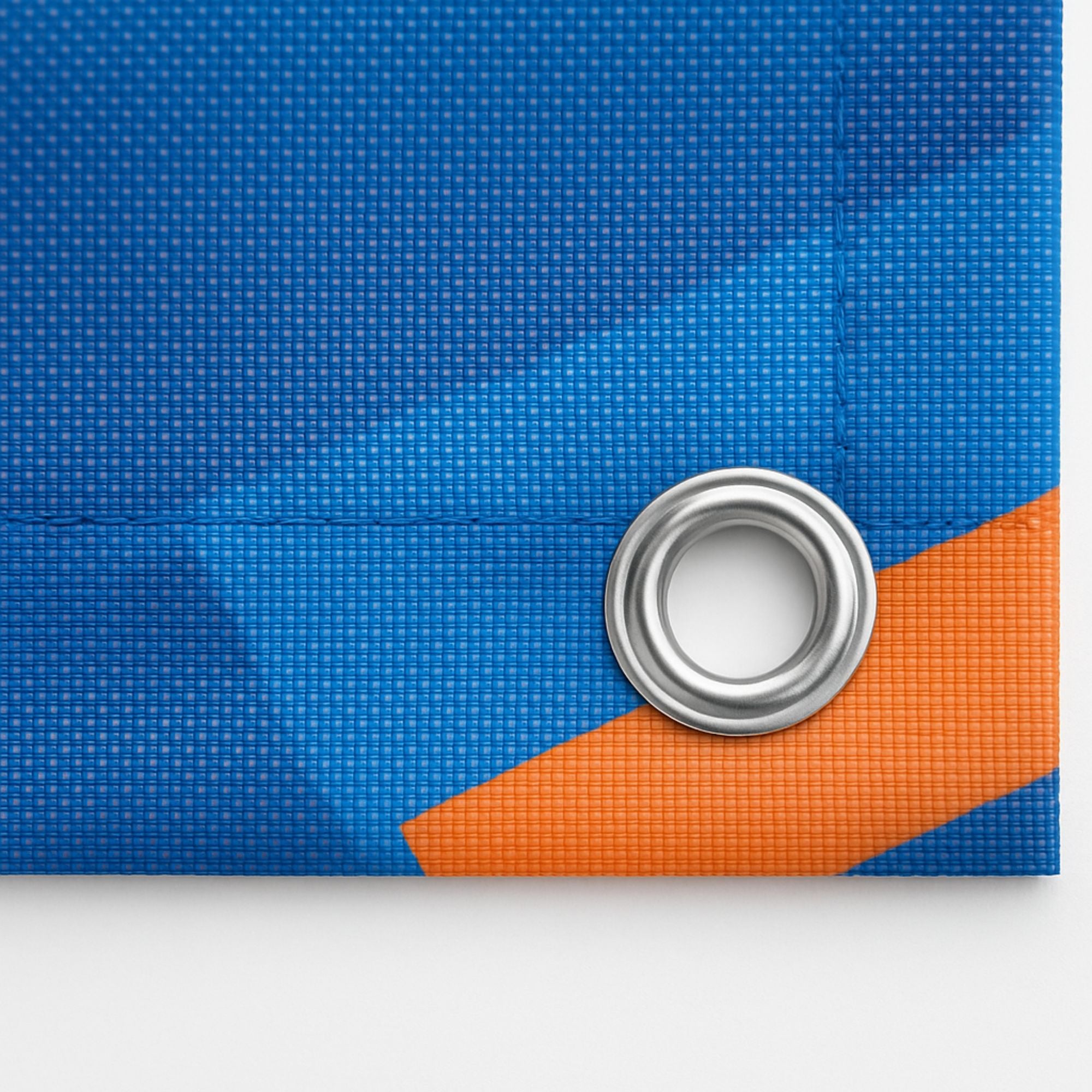

- Hem and eyelet option: Fasten with cable ties or string (not supplied)
- Pole pocket option: Fits 25mm diameter poles (contact us for larger sizes)
- Easy to install and remove for multiple uses
Please note: This product is a bespoke made to order item.
