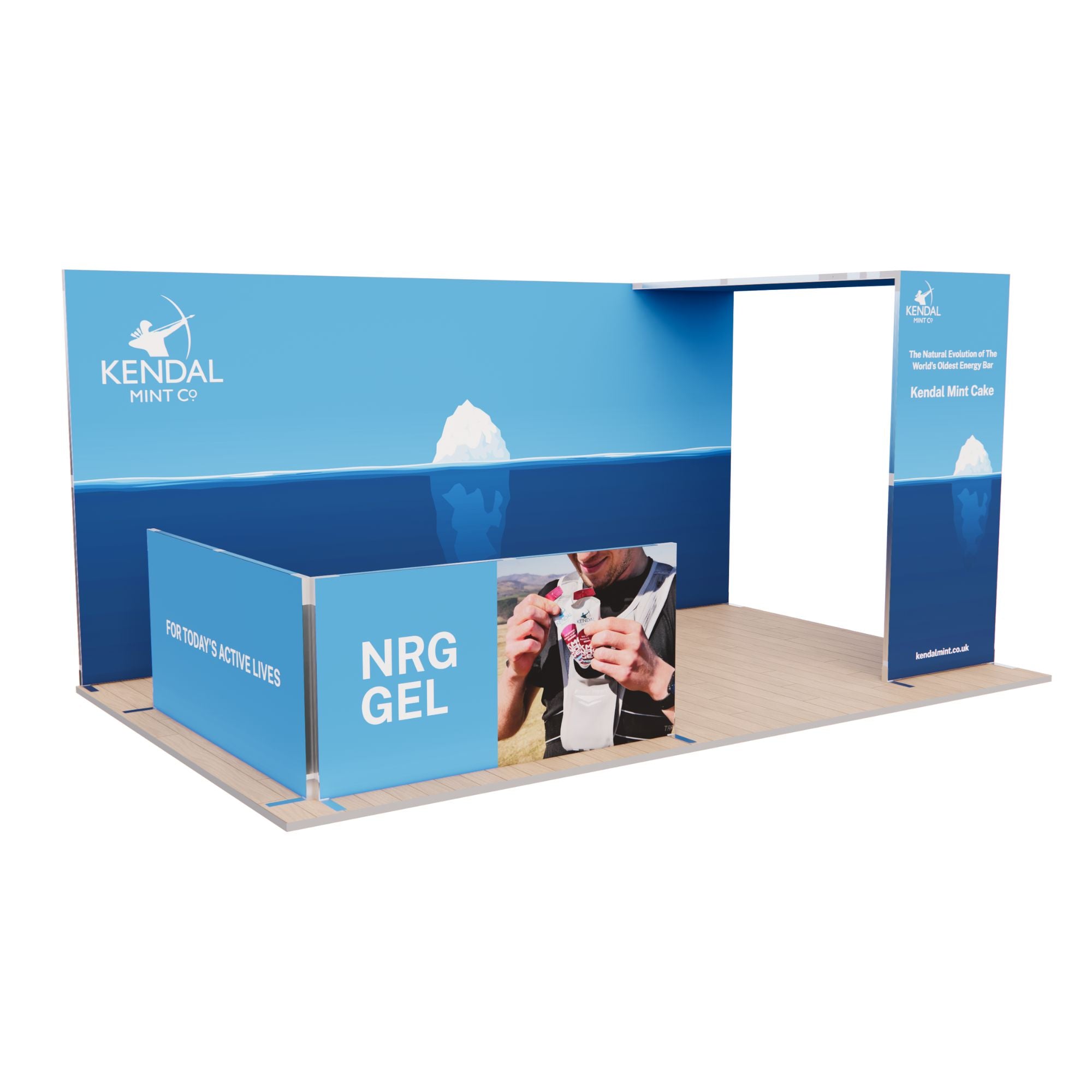

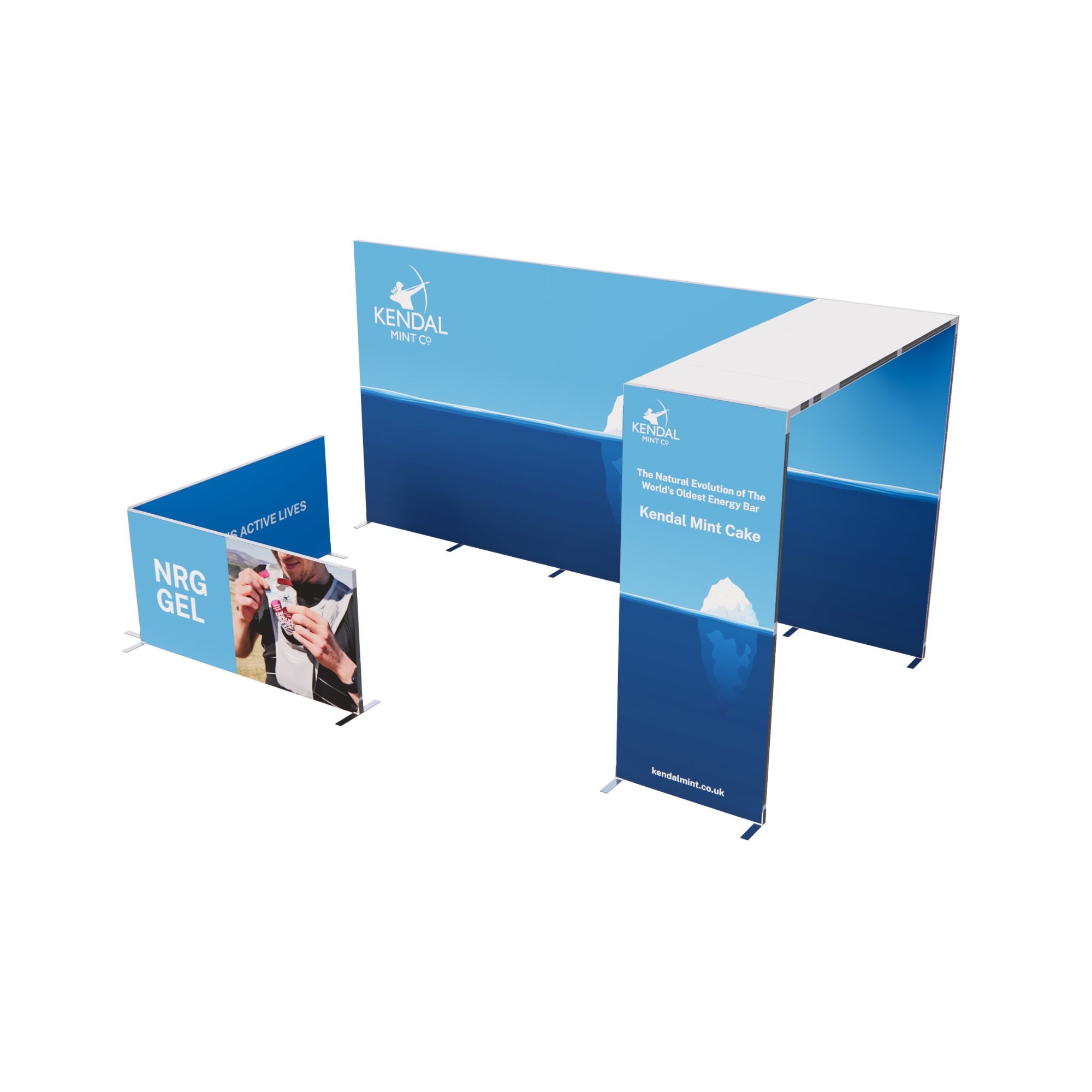

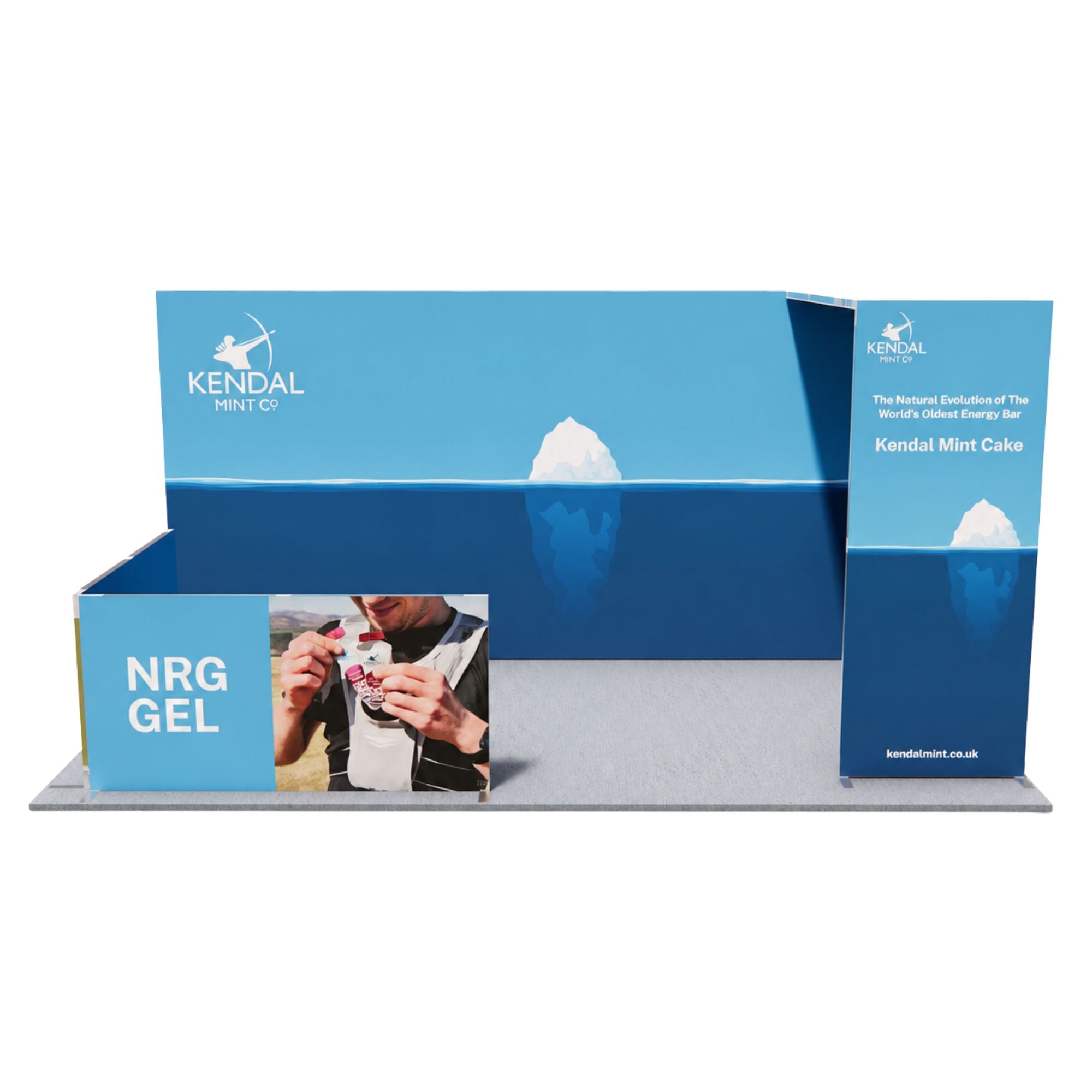

Designed to create a high-impact 5 m × 3 m backwall layout with an integrated arch and two branded barriers, this QwikFRAME modular kit delivers a strong, visitor-friendly stand. It fits neatly within common shell-scheme bays built around 950 mm and 1000 mm modules, and it can run freestanding for space-only plots, demos and activations.

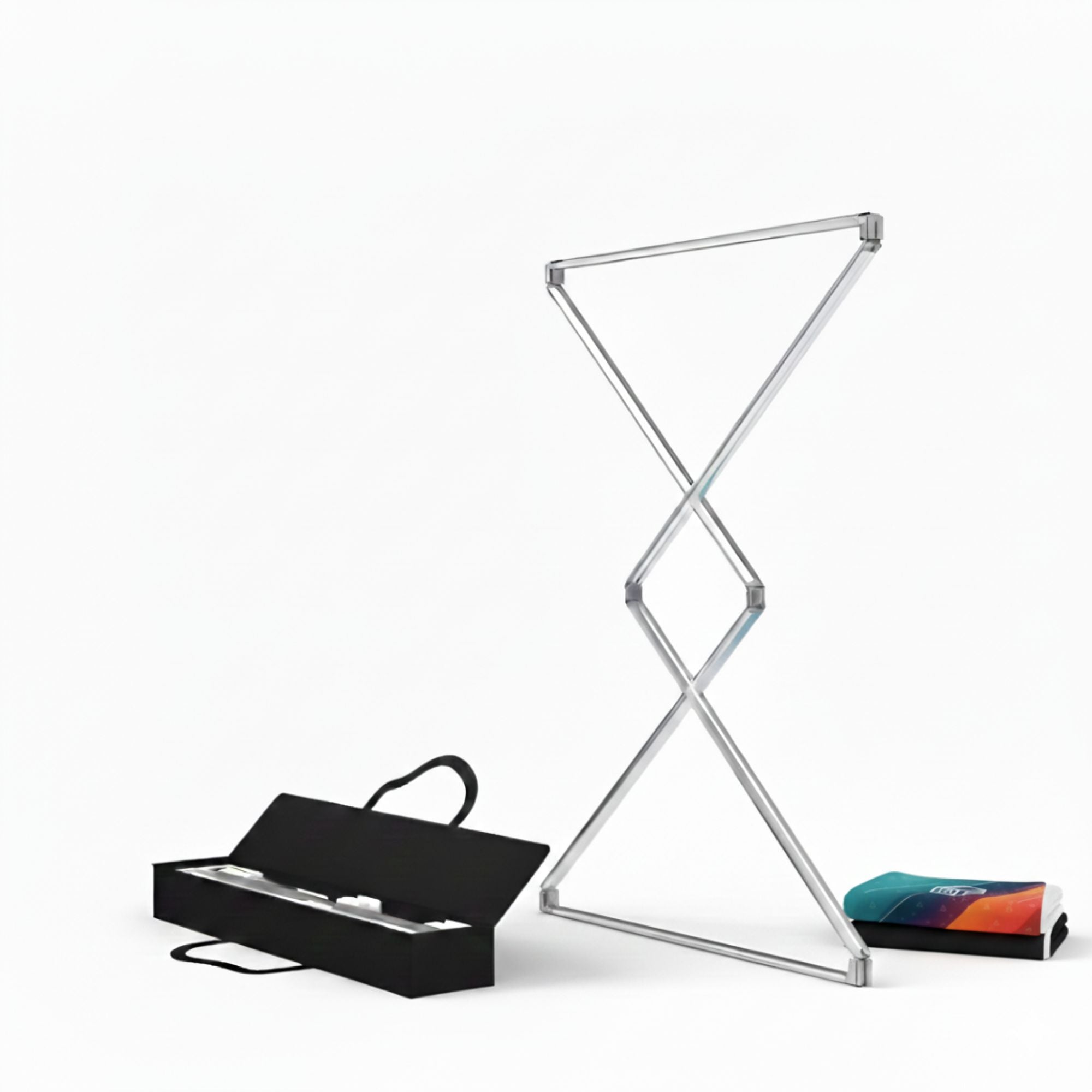

Built on QwikFRAME’s quick assembly aluminium system, each frame includes channels for SEG tension fabric graphics, producing a smooth, edge to edge finish with minimal visible hardware. Graphics push into the frame groove for a taut, crease resistant look and can be swapped whenever campaigns change. Choose 2000 mm or 2400 mm backwall height to suit venue rules and sightlines.

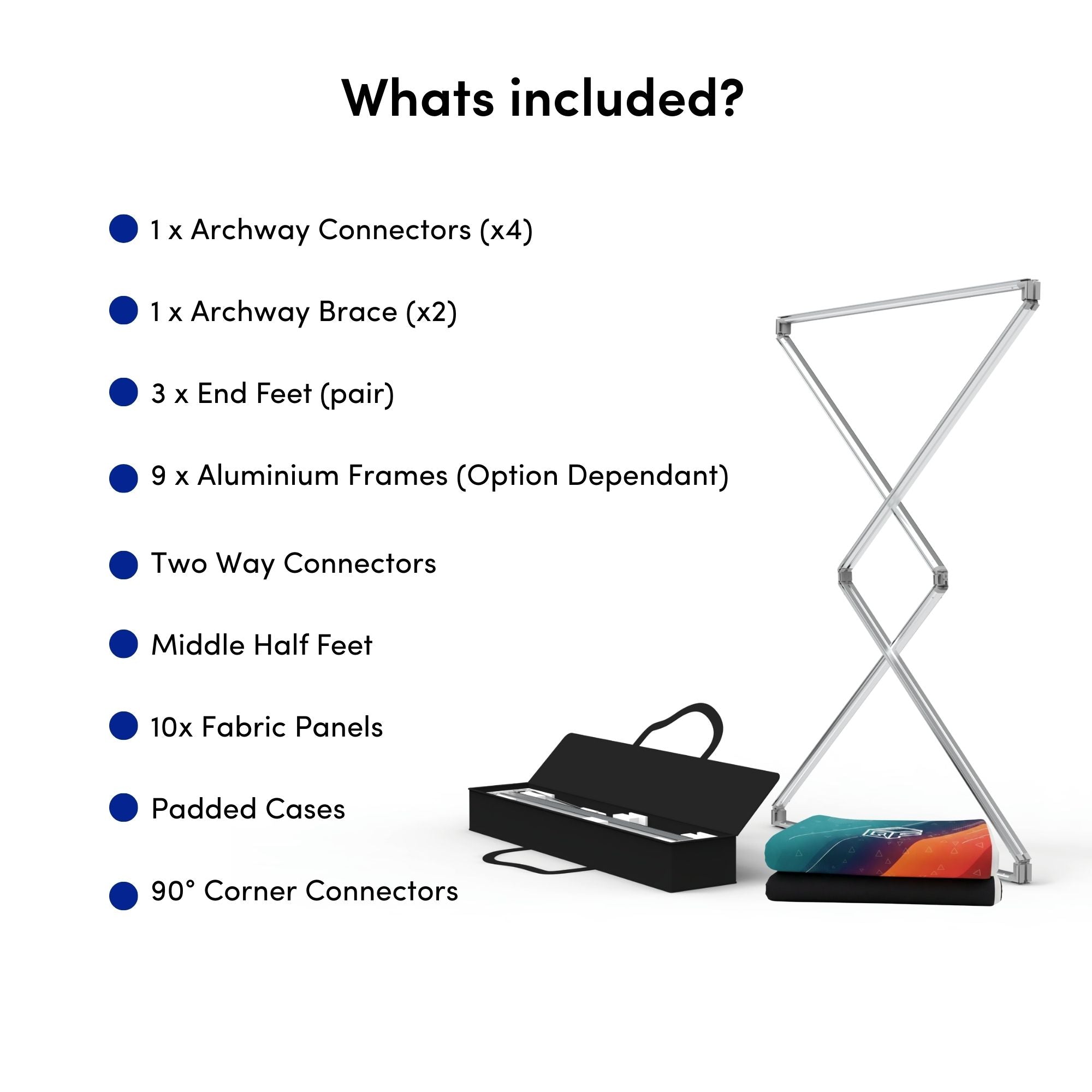

Product Specifications:

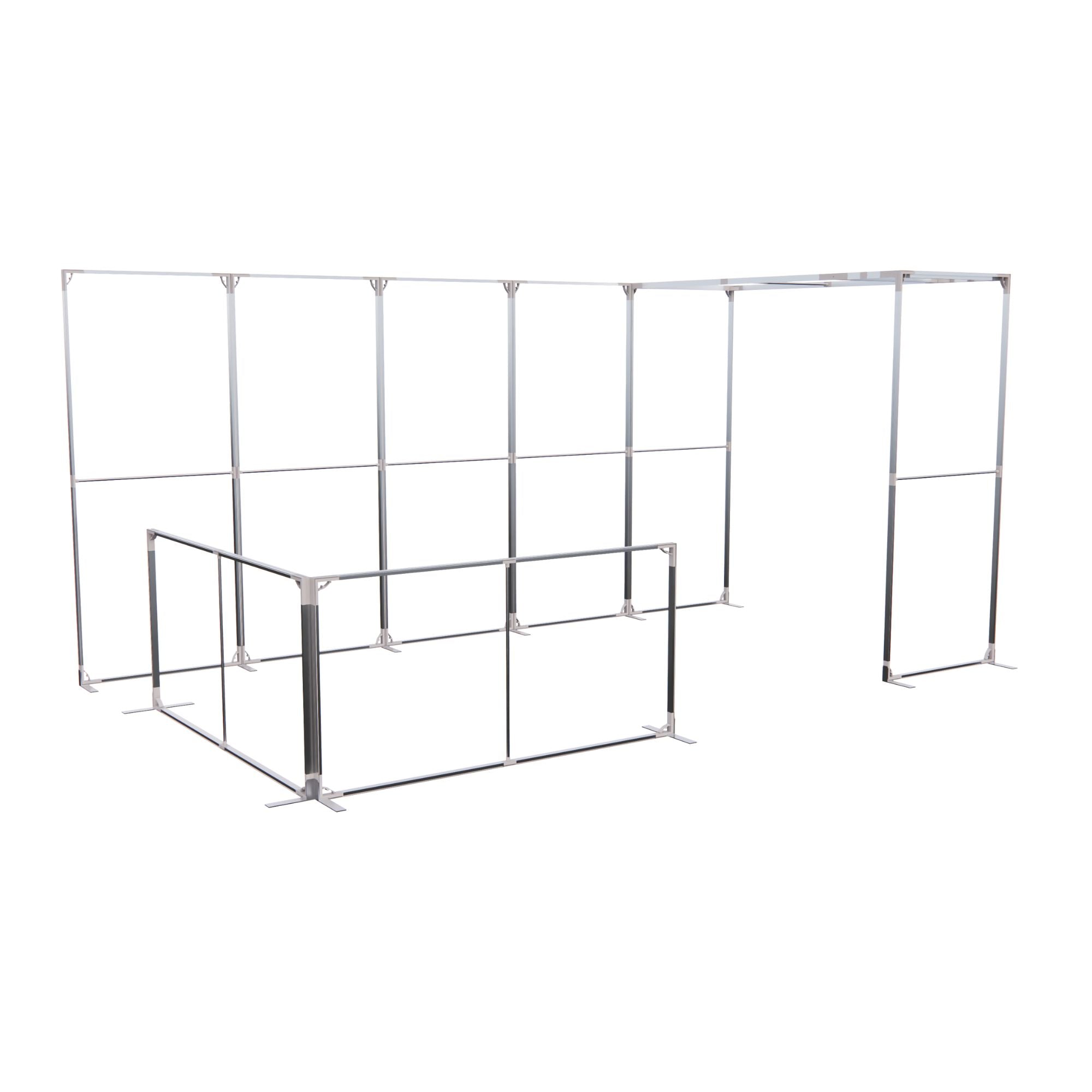

QwikFRAME aluminium frames (backwall):
- 2 × 950 mm wide × chosen height (2000 mm or 2400 mm)
- 3 × 1000 mm wide × chosen height (2000 mm or 2400 mm)
Arch components:
- Ceiling: 1 × 1000 × 2400 mm frame
- Front upright: 1 × 1000 mm wide × chosen height (2000 mm or 2400 mm)
- Kits: 1 × archway kit and 1 × arch brace kit
Barriers:
- 2 × barrier runs, each built from 1 × 1000 × 2000 mm frame
- Each barrier supplied with its own end feet and 90° corner connectors for a neat return
Feet:
- 2 × end feet (pairs) for the backwall extremities
- 3 × middle half feet (singles) for the backwall run
- 2 × end feet dedicated to the barriers
Connectors:
- 5 × two way connectors for in line linking
- 1 × 90° connector kit
- 1 × 90° middle connector kit
- Additional 90° corner connectors for each barrier return
SEG Fabric Graphics
Backwall:
- 1 × 5 m seamless graphic panel (front)
- 1 × 5 m seamless graphic panel (back) - printing option dependent
Arch:
- 1 × 1000 × chosen height front upright panel
- 1 × 1000 × 2400 underside ceiling panel
- 1 × plain black top panel for the ceiling to keep archway crisp.
Barriers:
- 2 × 1000 × 2000 barrier panels (front)
- 2 × 1000 × 2000 barrier panels (back) - printing option dependent
Optional Extras & Accessories:
- QwikFRAME LED spotlights and lighting kits
- Additional QwikFRAME frames and connector kits to extend the layout
- Screen or AV mounts for integrating monitors
- Extra feet for alternative configurations
- Replacement SEG graphics for future campaigns
- Brochure holders and additional counters
Please note: This is a bespoke made to order product tailored to your requirements.
